Back under original ownership!

Based in Rosetown, SK, Rosetown Flighting Supply has been offering replacement augers and flighting with long-lasting wear resistance for a variety of machines. We offer equipment for all models of combine harvesters and bubble-up augers. Whether they are drop-in units or weld-on kits, you can count on us. We also provide replacement flighting for cross augers, vertical or horizontal unload and all makes of loading augers.

Your Source of Quality Auger Flighting for:

Rosetown Flighting Supply offers auger flighting with long-lasting wear resistance for a variety of machines. We can provide for the following:

  • Feeder Wagons

  • Mixer Wagons

  • Grain Carts

  • Anchors

  • Food Handling Equipment

  • Snow Blowers

  • Post Hole Digger

  • Screw Piles

john-deere-combines

Our Other Products

  • Auger Tubing

  • Flanges

  • End Plates

  • Shafts

  • Downspouts

How to Order Flighting

To help you replace your current flighting, here’s a list of specifications to guide you with the process. For more information, contact our trained and professional staff, so you can get what you need.

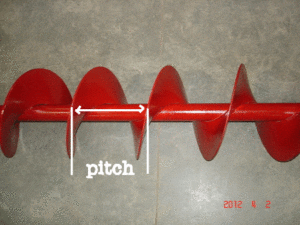

MEASURE PITCH

The pitch is the distance from one flight to the next and is measured parallel to the shaft.

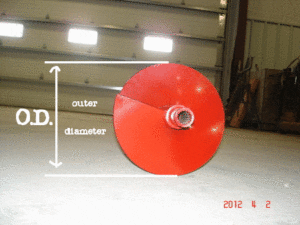

MEASURE OUTSIDE DIAMETER

Outside Diameter (O.D.) should be 3/4" to 1" less than the tube it is going into.

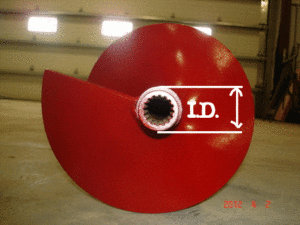

MEASURE INSIDE DIAMETER

Inside Diameter (I.D.) is the hole in the middle of the flighting into which the center shaft inserts. When you replace the flighting on an existing auger, the most accurate way to measure this is to put a caliper on the old shaft. Measuring tapes are NOT accurate enough to achieve a snug fit.

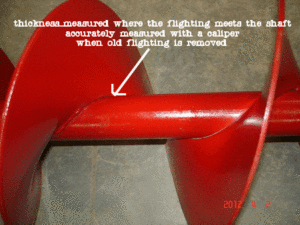

THICKNESS

The thickness of the flighting is measured where the flighting meets the shaft; this is the thickest point. Most of the sizes we stock are in both standard and heavy-duty.

LENGTH

Length is the overall length to the nearest foot. All of our flighting is sold in five-foot lengths for easier shipping.

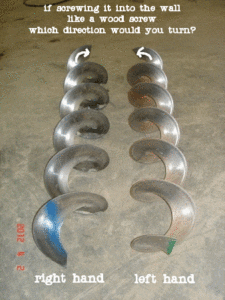

RIGHT HAND FLIGHTING SIZES

size O.D X PITCH X I.D.material
R 2 1/16 x 2 x 11/8
R 2 x 2 x ¾3/16
R 2 ¼ x 1 ½ x ¾3/16
R 2 ½ x 2 ½ x 5/83/16
R 2 ½ x 3 x 7/83/16
R 2 ½ x 3 x 7/83/16
R 2 ½ x 3 x 7/83/16
R 2 ¾ x 2 ¾ x 5/83/16
R 2 7/8 x 2 7/8 x 7/83/16
R 3 x 3 x 5/83/16
R 3 x 3 x 7/83/16
R 3 x 3 x 13/8
R 3 x 3 x 1 1/83/16
R 3 x 3 x 1 ¼3/16
R 3 ¼ x 3 ¼ x ¾3/16
R 3 3/8 x 3 3/8 x 7/83/16
R 3 3/8 x 3 3/8 x 1 1/163/16
R 3 ½ x 3 ½ x 5/83/16
R 3 ½ x 3 ½ x 1 ¼3/16
R 4 x 4 x 1 1/163/16
R 4 x 4 x 1 5/16¼
R 4 x 4 x 1 5/83/16
R 4 3/8 x 4 3/8 x 1 1/163/16
R 4 3/8 x 4 3/8 x 1 ¼3/16
R 4 3/8 x 4 3/8 x 1 5/163/16
R 4 3/8 x 4 3/8 x 1 5/83/8
R 4 ½ x 4 ½ x 7/83/16
R 4 ½ x 4 ½ x 1 ½3/16
R 4 ¾ x 4 ¾ x 1 1/163/16
R 5 x 5 x 13/16
R 5 x 5 x 1 1/163/16
R 5 x 5 x 1 ½3/8
R 5 x 5 x 1 5/83/16
R 5 x 5 x 1 3/83/16
R 5 x 5 x 2 ½3/16
CB R 5 1/8 x 6 x 1 ¼3/16
R 5 3/8 x 5 3/8 x 13/16
R 5 3/8 x 5 3/8 x 1 1/163/16
R 5 3/8 x 5 3/8 x 1 1/161/4
R 5 3/8 x 5 3/8 x 1 1/83/16
R 5 3/8 x 5 3/8 x 1 3/163/16
R 5 3/8 x 5 3/8 x 1 ¼3/16
R 5 3/8 x 5 3/8 x 1 5/163/16
R 5 3/8 x 5 3/8 x 1 ½3/16
R 5 3/8 x 5 3/8 x 1 5/83/16
R 5 3/8 x 5 3/8 x 1 7/83/8
R 6 x 3 x 2 ½1/4
R 6 x 3 x 2 ½1/4
R 6 x 6 x 13/16
R 6 x 6 x 1 1/83/16
R 6 x 6 x 1 3/83/16
R 6 x 6 x 1 ½3/16
R 6 x 6 x 1 ½3/8
R 6 x 6 x 1 5/83/16
R 6 x 6 x 21/4
R 6 x 6 x 2 ½1/4
R 6 3/8 x 6 3/8 x 13/16
R 6 3/8 x 6 3/8 x 1 1/163/16
R 6 3/8 x 6 3/8 x 1 1/83/16
R 6 3/8 x 6 3/8 x 1 ¼3/16
R 6 3/8 x 6 3/8 x 1 5/163/16
R 6 3/8 x 6 3/8 x 1 ½3/16
R 6 3/8 x 6 3/8 x 1 5/83/16
R 6 3/8 x 6 3/8 x 2 3/83/16
CB R 6 ½ x 6 ½ x 1 3/83/16
R 6 ¾ x 6 ¾ x 1 ¼3/8
CB R 7 x 5 x 1 ¼3/16
R 7 x 7 x 1 ¼3/16
R 7 x 7 x 1 ½3/16
R 7 x 7 x 1 5/81/4
R 7 x 7 x 1 7/83/16
R 7 x 7 x 33/16
R 7 ¼ x 7 ¼ x 1 ½3/16
R 7 3/8 x 7 3/8 x 13/16
R 7 3/8 x 7 3/8 x 1 1/63/16
R 7 3/8 x 7 3/8 x 1 ¼3/16
R 7 3/8 x 7 3/8 x 1 ¼1/4
R 7 3/8 x 7 3/8 x 1 5/163/16
R 7 3/8 x 7 3/8 x 1 5/83/16
R 7 3/8 x 7 3/8 x 1 ¾3/16
R 7 3/8 x 7 3/8 x 1 7/83/16
R 7 3/8 x 7 3/8 x 23/16
R 7 3/8 x 7 3/8 x 2 3/81/4
R 7 ½ x 6 x 1 3/8 (7’)1/4
CB R 7 ½ x 7 ½ x 1 ¼3/16
R 7 ½ x 7 ½ x 4 ¼3/8
R 7 ½ x 8 ½ x 23/16
R 7 ½ x 8 ½ x 2 ½¼
R CB 8 x 6 ¾ x 2¼
R 8 x 8 x 13/16
R 8 x 8 x 1 1/83/16
R 8 x 8 x 1 ¼¼
R 8 x 8 x 1 ½¼
R 8 x 8 x 1 5/8¼
R 8 x 8 x 23/16
R 8 ¼ x 8 ¼ x 1 ¼¼
CB R 8 3/8 x 6 ¼ x 1 5/83/8
R 8 3/8 x 8 3/8 x 13/16
R 8 3/8 x 8 3/8 x 1 3/16¼
CB R 8 3/8 x 8 3/8 x 1 3/83/16
CB 8 ½ x 6 x 1 3/8¼
R 8 ½ x 6 ¼ x 1 9/16¼
CB R 8 ½ x 6 ½ x 1 7/85/16
R 8 ½ x 8 ½ x 23/16
CB R 8 ½ x 9 x 1 3/8¼
CB R 8 ½ x 9 x 1 7/85/16
CB R 8 5/8 x 7 x 2 ½5/16
R 8 5/8 x 8 5/8 x 1 5/8¼
R 8 ¾ x 8 ½ x 1 9/16¼
R 9 x 6 x 2 7/83/16
R 9 x 9 x 1 ¼3/16
R 9 x 9 x 1 7/83/16
R 9 x 9 x 23/16
R 9 x 9 x 2 3/83/16
R 9 x 9 x 2 3/8¼
R 9 x 9 x 2 ½3/16
R 9 x 9 x 2 7/83/16
R 9 x 9 x 2 7/85/16
R 9 x 9 x 33/8
R 9 x 9 x 53/16
R 9 x 10 x 63/16
R 9 x 12 x 53/16
R 9 x 14 x 63/16
CB R 9 ¼ x 8 ½ x 2 ½5/16
R 9 ½ x 9 ½ x 2 3/83/16
CB R 10 x 9 ½ x 2 ½3/8
R 10 x 10 x 1 7/8¼
R 10 x 10 x 23/16
R 10 x 10 x 2 3/83/16
R 10 x 10 x 2 ½¼
R 10 x 10 x 35/16
R 10 3/8 x 10 3/8 x 1 5/83/16
R 11 x 8 x 1 7/83/8
R 11 x 9 x 3 ¼3/16
R 11 x 11 x 2 3/8¼
R 11 x 11 x 2 ½¼
CB R 11 x 11 x 2 7/83/16
CB R 11 x 11 x 3 ½¼
R 11 x 11 ¾ x 1 5/8¼
R 11 x 12 x 5¼
R 11 ½ x 11 ½ x 2 ½¼
CB R 11 ½ x 11 ½ x 3¼
R 11 ½ x 12 ½ x 3¼
CB R 11 ½ x 14 x 3¼
R 11 ¾ x 11 ¾ x 2 3/8¼
R 11 ¾ x 11 ¾ x 3¼
CB R 12 x 8 ½ x 3¼
R 12 x 11 ¼ x 33/16
R 12 x 12 x 2 3/8¼
R 12 x 12 x 2 7/8¼
R 12 x 12 x 2 7/85/16
R 12 x 12 x 3¼
R 12 x 12 x 3 ½3/8
R 12 x 12 x 63/16
R 13 x 13 x 2 7/85/16
R 13 x 13 x 3¼
R 13 x 13 x 35/16
R 13 x 13 x 3 ½¼
R 14 x 7 x 3¼
R 14 x 10 x 6¼
R 14 ½ x 15 ½ x 35/16
R 15 x 15 x 35/16
R 15 x 15 x 3 ½3/8
R 16 x 10 x 4¼
R 16 x 16 x 55/16
R 16 x 16 x 53/8
R 16 ¼ x 16 ¼ x 4 ¼5/16
R 17 x 17 x 45/16
R 17 x 17 x 4 ½5/16
R 19 x 19 x 53/8
R 20 x 20 x 163/16
R 20 ½ x 20 ½ x 63/8
CB R 24 x 26 x 163/16

LEFT HAND FLIGHTING SIZES

size O.D X PITCH X I.D.material
L 2 ½ x 2 ½ x 5/83/16
L 2 ½ x 3 x 7/83/16
L 2 ½ x 3 x 7/83/16
L 2 ½ x 3 x 7/83/16
L 2 ¾ x 2 ¾ x 7/83/16
L 3 x 3 x 5/83/16
L 3 x 3 x 7/83/16
L 3 x 3 x 13/8
L 3 3/8 x 3 3/8 x 7/83/16
L 3 ½ x 3 ½ x 1 1/163/16
L 3 ½ x 3 ½ x 1 ¼3/16
L 3 5/8 x 3 5/8 x ¾3/16
L 4 x 4 x 1 5/83/16
L 4 3/8 x 4 3/8 x 1 1/163/16
L 4 3/8 x 4 3/8 x 1 3/163/16
L 4 3/8 x 4 3/8 x 1 ¼3/16
L 4 3/8 x 4 3/8 x 1 5/163/16
CB L 4 ½ x 5 ½ x 1 ¼¼
L 5 x 5 x 13/16
L 5 x 5 x 1 1/163/16
L 5 x 5 x 1 ½3/8
L 5 x 5 x 2 ½3/16
CB L 5 x 5 ½ x 1 3/16¼
L 5 3/8 x 5 3/8 x 13/16
L 5 3/8 x 5 3/8 x 1 1/163/16
L 5 3/8 x 5 3/8 x 1 1/83/16
L 5 3/8 x 5 3/8 x 1 ¼3/16
L 5 3/8 x 5 3/8 x 1 5/163/16
L 5 3/8 x 5 3/8 x 1 ½3/16
L 5 3/8 x 5 3/8 x 1 5/83/16
L 5 3/8 x 5 3/8 x 1 7/83/16
L 5 ½ x 5 ½ x 1 3/163/16
L 5 ½ x 5 ½ x 1 ¼3/16
L 6 x 6 x 1 3/16¼
L 6 x 6 x 1 ¾¼
L 6 x 6 x 2 3/8¼
L 6 3/8 x 6 3/8 x 13/16
L 6 3/8 x 6 3/8 x 1 1/163/16
L 6 3/8 x 6 3/8 x 1 1/83/16
L 6 3/8 x 6 3/8 x 1 ¼3/16
L 6 3/8 x 6 3/8 x 1 5/163/16
L 6 3/8 x 6 3/8 x 1 ½3/16
L 6 3/8 x 6 3/8 x 1 5/83/16
CB L 6 ¾ x 6 ¾ x 1 5/163/16
L 7 x 7 x 13/16
L 7 x 7 x 1 ¼3/16
CB L 7 x 7 x 1 5/161/4
L 7 x 7 x 1 ½3/16
L 7 x 7 x 1 5/8¼
L 7 x 7 x 1 ¾3/16
L 7 x 7 x 23/16
L 7 3/8 x 7 3/8 x 13/16
L 7 3/8 x 7 3/8 x 1 1/63/16
L 7 3/8 x 7 3/8 x 1 ¼3/16
L 7 3/8 x 7 3/8 x 1 5/163/16
L 7 3/8 x 7 3/8 x 1 ½3/16
L 7 3/8 x 7 3/8 x 1 5/83/16
L 7 3/8 x 7 3/8 x 1 7/83/16
L 7 3/8 x 9 ½ x 1 ¼3/16
L 7 ½ x 7 ½ x 2 ½3/16
L 7 ½ x 7 ½ x 33/16
CB L 7 ½ x 8 ½ x 1 5/16¼
L 7 ½ x 8 ½ x 23/16
L 7 ½ x 8 ½ x 2 ½¼
L 7 ¾ x 7 ¾ x 1 ¾¼
CB L 8 x 8 x 1 ¼3/8
CB L 8 x 8 x 1 5/161/4
¼
CB L 8 x 8 x 1 5/85/16
L 8 x 8 x 3¼
L 8 ¼ x 8 ¼ x 1 5/163/16
CB L 8 ¼ x 8 ¼ x 1 ¾3/8
CB L 8 ¼ x 8 ¼ x 2 3/8¼
L 8 ½ x 8 ½ x 1 ¼5/16
CB L 8 ½ x 8 ½ x 1 7/85/16
L 8 ½ x 8 ½ x 2 ¼5/16
CB L 8 ½ x 8 ½ x 2 ¼5/16
L 8 5/8 x 8 5/8 x 1 5/8¼
L 9 x 9 x 1 5/83/16
L 9 x 9 x 1 7/83/16
L 9 x 9 x 23/16
CB L 9 x 9 x 2 3/83/16
L 9 x 9 x 2 ½3/16
L 9 x 9 x 33/16
L 9 x 9 x 53/16
L 9 x 10 x 63/16
L 9 x 12 x 53/16
L 9 x 14 x 63/16
L 9 ¾ x 7 x 1 7/83/8
CB L 10 x 7 ½ x 1 7/83/8
CB L 10 x 7 ½ x 3 ½¼
CB L 10 x 8 ½ x 1 15/165/16
L 10 x 10 x 1 7/8¼
L 10 x 10 x 2¼
L 10 x 10 x 2 3/83/16
L 10 x 10 x 2 ½3/16
L 10 x 10 x 2 7/8¼
L 10 x 10 x 3¼
L 10 x 10 x 3 ½¼
L 10 x 13 x 2 ½3/16
L 11 x 8 x 1 7/83/8
L 11 x 10 x 4 ½¼
L 11 x 11 x 2 3/8¼
L 11 x 11 x 2 ½¼
CB L 11 x 11 x 2 7/83/16
L 11 x 11 x 3 ½3/8
L 11 x 11 x 3 ¾¼
CB L 11 x 12 x 4 ½¼
CB L 11 x 12 x 5¼
L 11 ½ x 11 ½ x 2 3/8¼
L 11 ½ x 11 ½ x 33/16
CB L 11 ¾ x 10 x 35/16
L 11 ¾ x 10 ¼ x 5 ¼¼
CB L 11 ¾ x 13 ½ x 3 ½¼
L 12 x 12 x 2 ½¼
L 12 x 12 x 2 7/8¼
L 12 x 12 x 63/16
CB L 12 x 13 ½ x 2 7/8¼
CB L 13 x 9 ½ x 4 ½¼
L 13 x 13 x 35/16
L 13 ¼ x 9 x 3 ¼¼
CB L 14 x 10 x 6¼
L 14 x 14 x 2 3/85/16
L 15 x 15 x 3 ½3/8
L 15 ¼ x 16 x 2 7/8¼
L 15 ¼ x 17 x 3 ½¼
L 15 ¾ x 10 x 4 ½¼
L 16 x 10 x 4¼
L 16 x 16 x 55/16
L 17 x 17 x 53/8
L 20 x 20 x 87/16
L 20 x 20 x 163/16
L 20 ½ x 20 ½ x 63/8
CB L 24 x 26 x 163/16

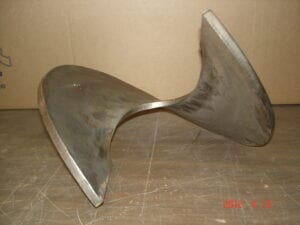

Sectionals

On most of our replacement products, we have sectional flighting made from 1/4", 5/16", or 3/8" thickness in your choice of mild steel or AR-400 (abrasion-resistant) steel. Sectionals maintain the same thickness throughout due to the available production process of one turn of flighting. This kind of flighting is perfect for high wear areas and oil field and concrete applications.

Shipping

For your convenience, we can ship our products anywhere with year-round, same-day shipping.

  • All shipments are subject to a nominal handling charge.

  • All small orders received before 10:00 AM CST are guaranteed to be shipped the same day.

  • Guaranteed overnight shipping will incur additional cost and is subject to your location.

  • We ship our flighting in 5 foot lengths for ease in shipping and to reduce freight cost.


Smaller Shipments

These are orders under 100 feet and/or under 80 lbs/package, depending on the size of the flighting. We ship them in boxes.

Purolator - Pre-pay the freight on our invoice and have it delivered door to door. A proper business address is required.


Larger Shipments

These are orders over 100 feet and/or exceeding 80 lbs/package. We ship them in pallets.

Transport - We get the freight quote for you and then arrange the pickup and delivery.
